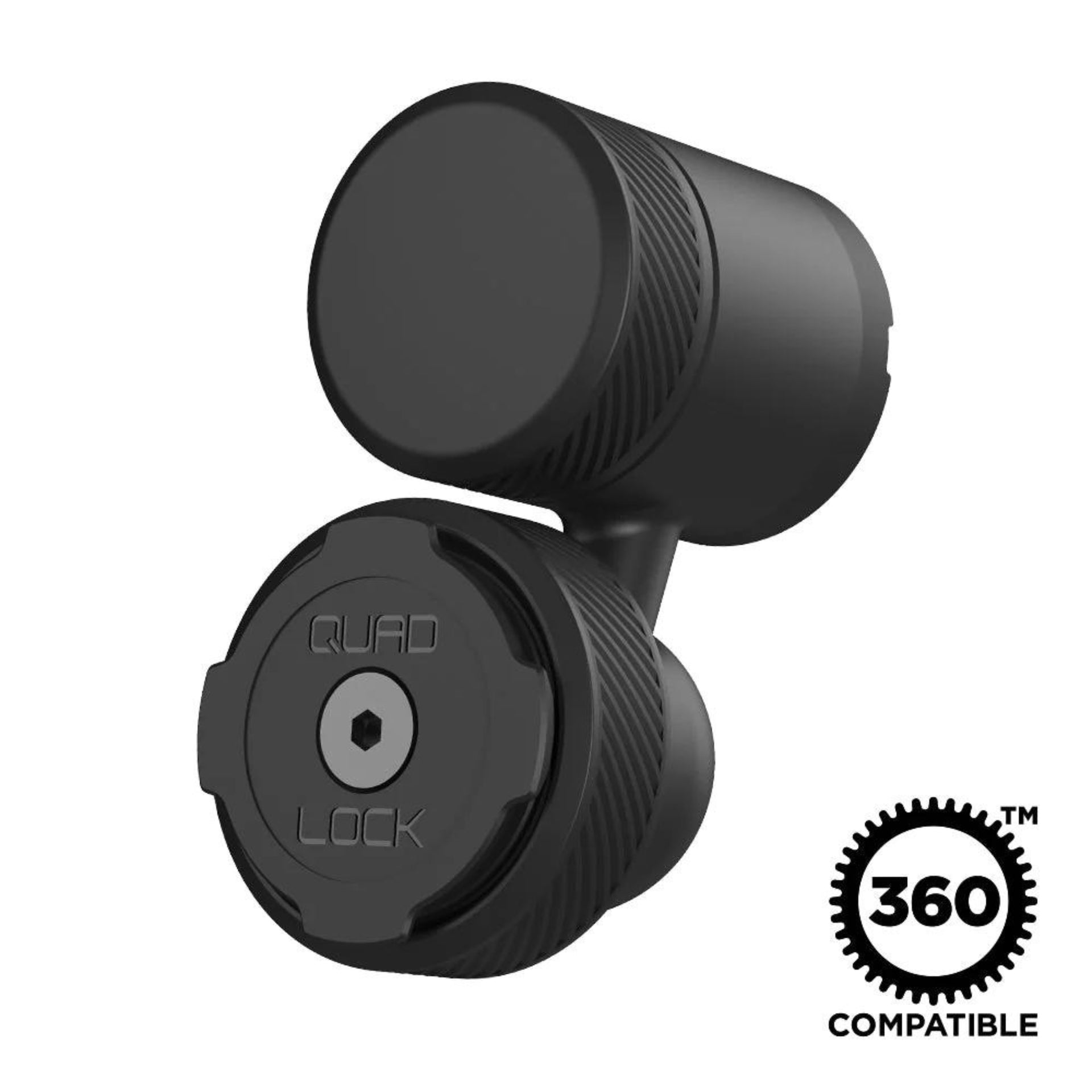

Quad Lock Vent Car Mount

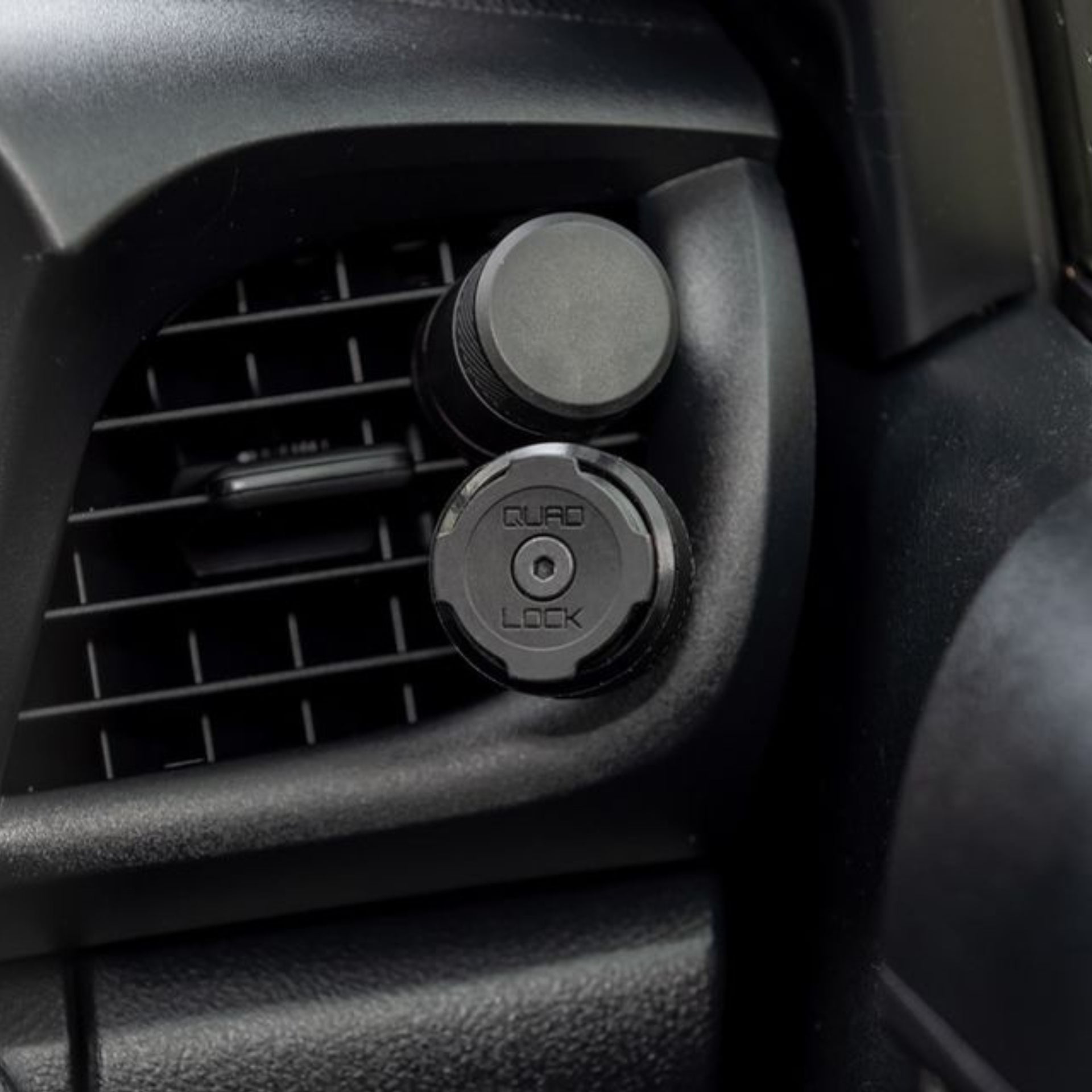

The clever hook design firmly holds the mount to a variety of car vents, while still allowing you to operate the open and close function.
Please note: The Vent Mount is not compatible with 360 degree gimbal vents.
The hook extends between 10mm to 32mm to allow for installation in a variety of blade widths.
With four possible placement positions for the mount head and an adjustable ball joint for finer adjustments, you'll always find the perfect position for your phone.
MAG AND WIRELESS CHARGING (OPTIONAL)

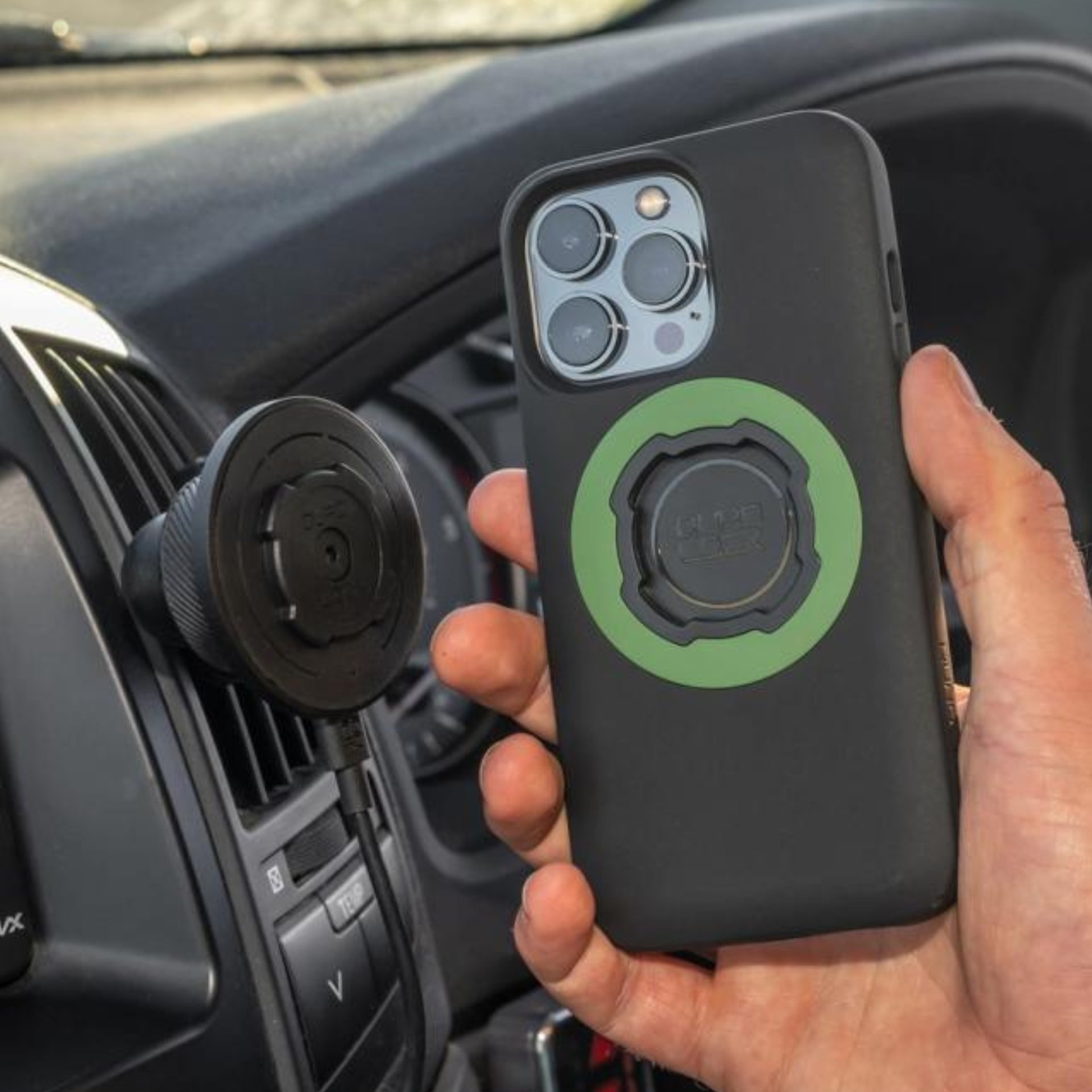

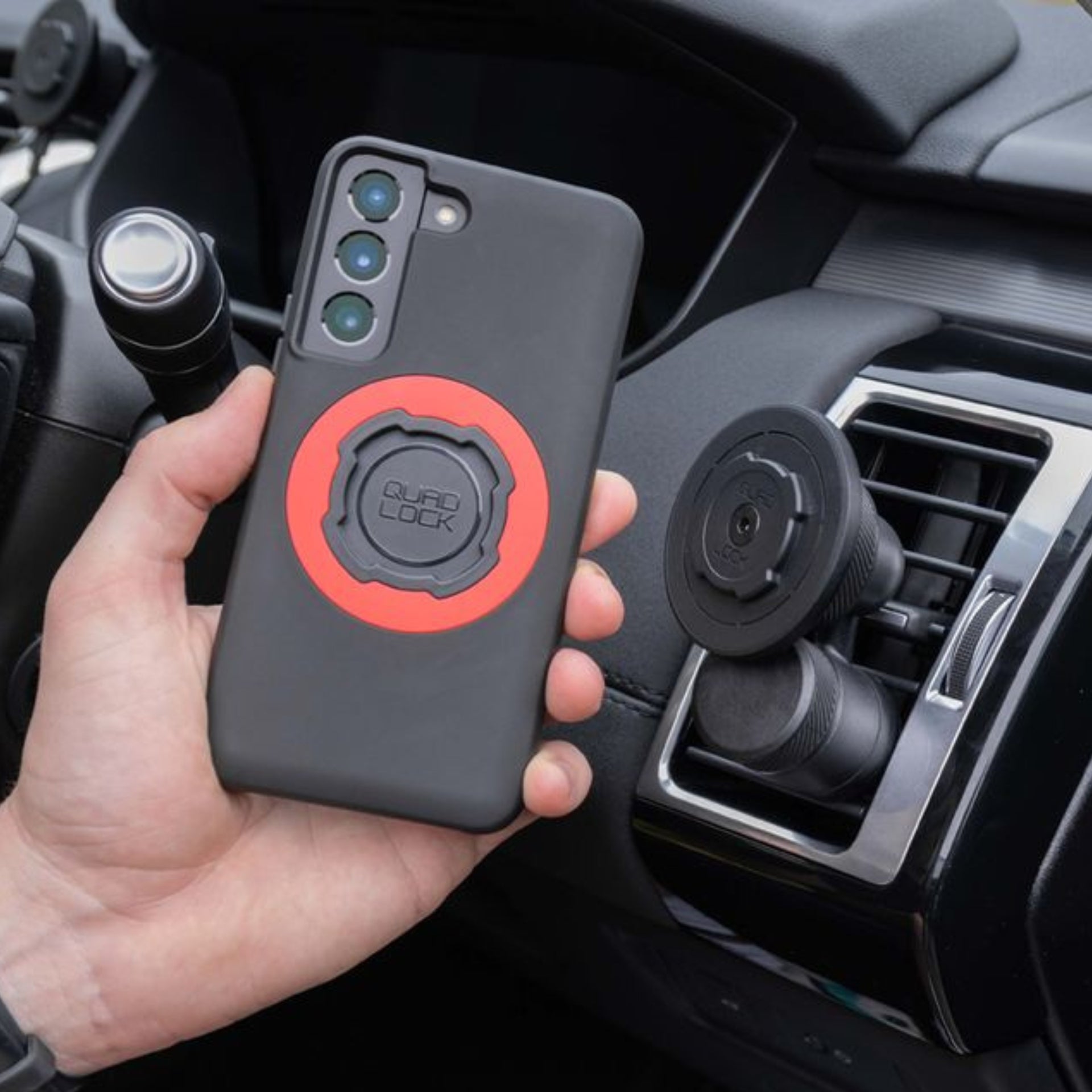

Upgrade your mount with one of our two Quad Lock MAG™ Heads and make mounting your phone even easier.

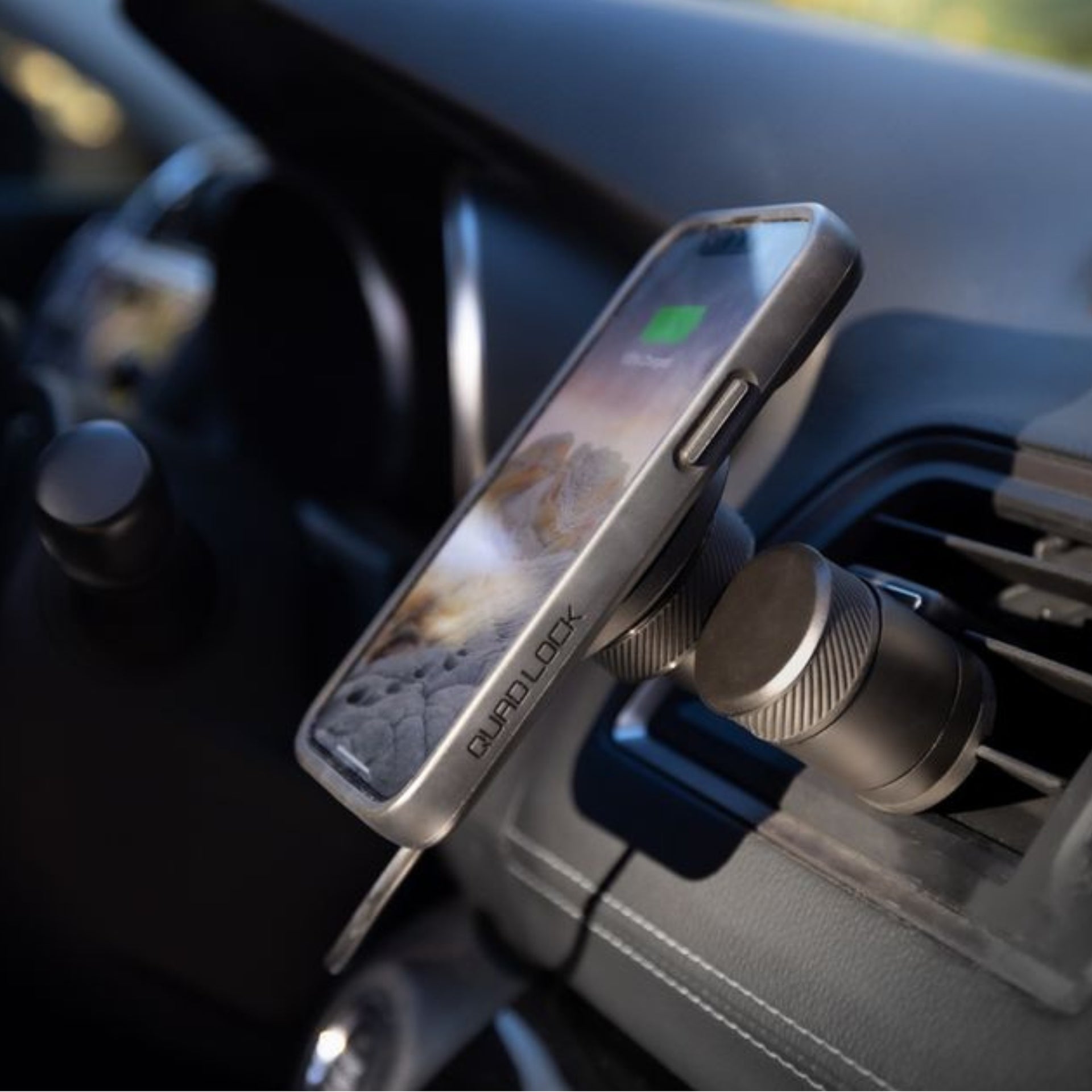

Add the Quad Lock MAG™ Wireless Charging Head and always keep your phone battery in the green, no matter the adventure.
Quad Lock MAG™ Heads require use of a Quad Lock MAG™ Case or MAG Universal Adaptor.Wireless Charging Heads purchased before July 2022 not compatible with Adhesive Dash/Console Mount and Vent Mount.
- 1 x Quad Lock® Vent Car Mount
- 1 x Quad Lock 360™ Top Cap
- 1 x Quad Lock MAG™ Head with 3mm hex (Allen) key in black zinc finish and M5 x 20mm Countersunk head hex socket screw in black
- 1 x Quad Lock MAG™ Wireless Charging Head with 3mm hex (Allen) key in black zinc finish, 1.5M USB-C to USB-A Cable and M5 x 20mm Countersunk head hex socket screw in black
- Glass filled nylon
- TPU knurled locking nuts
- Steel vent hook
- Compatible with all Quad Lock® Cases and Universal Adaptors
- Compatible with Quad Lock® Wireless Charging Head
- Compatible with all Quad Lock MAG™ Heads
- Straight blades
- Secure, not easily removable blades
- Minimum 8mm gap between blades (5/16 inch)
The Vent Mount must be braced against 3 level fins to be installed. Please ensure the back of the mount is not interacting with the vent housing.

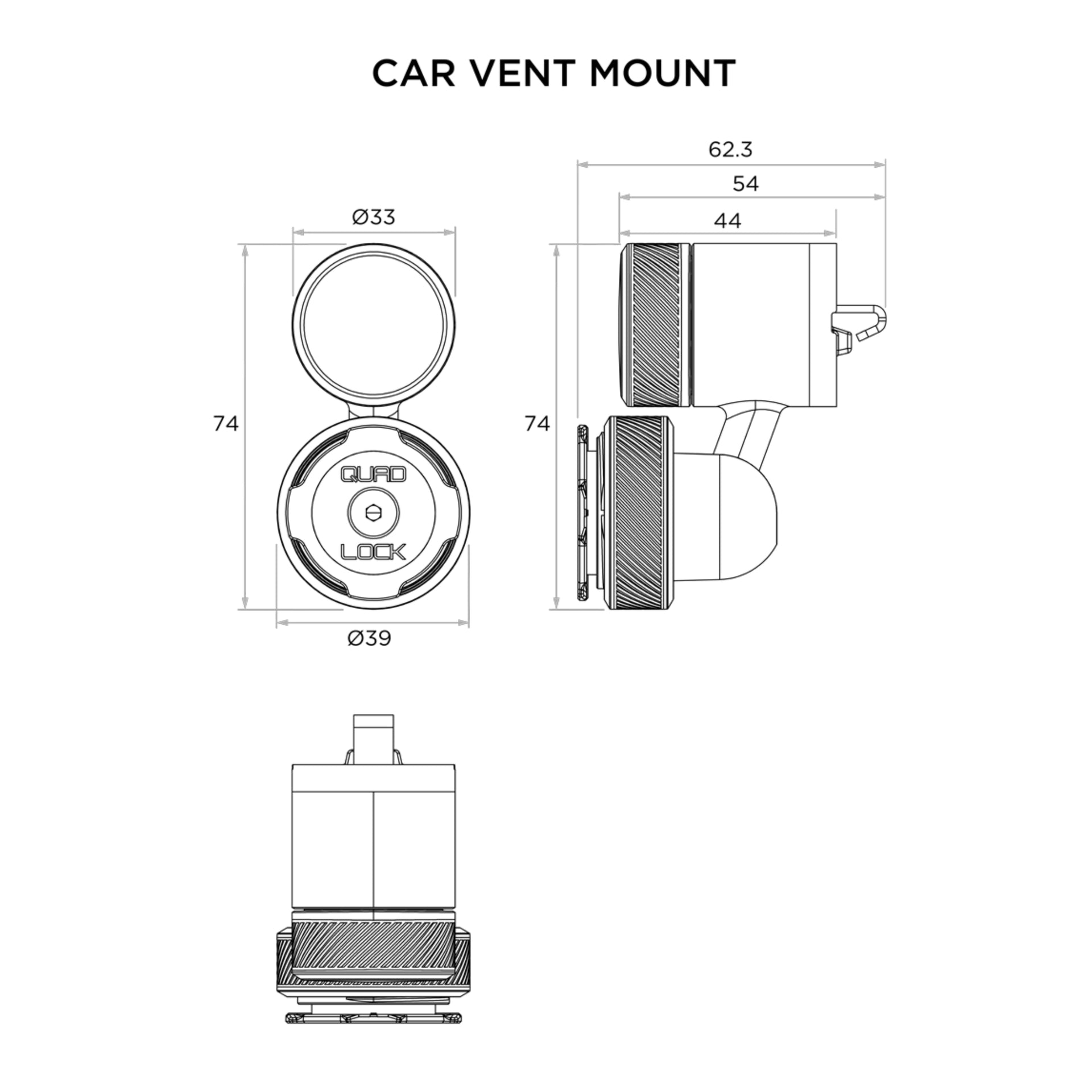

We recommend using the above diagrams as a guide for suitability, please be aware that Motorrad Venture MV GmbH cannot be liable for any damage that may occur during installation and use when the mount is free of fault or defect.
